Power Supply Prototype PCB Board Multilayer Fabrication Service ENIG Surface Finish

Product Categories
Accuracy Electronics Technologies Co.,Ltd
Contact Now

Power Supply Prototype PCB Board Multilayer Fabrication Service ENIG Surface Finish

  • 1
  • 2

Brand Name : ACCPCB

Model Number : P1054

Certification : ISO,SGS,TS16949

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T ,Western Union,Paypal

Supply Ability : 50000SQ.M/Per Month

Delivery Time : 3-5days

Packaging Details : Vacuum packing

Material : FR4

Count : Multi layer / 4 layer

Surface Finish : ENIG

Usage : Switch Power equipment

Solder Mask : Green

Copper thickness : 1oz all layer

Min. hole size : 0.1mm

Min. line spacing : 0.1mm4mil)

Product name : 94v0 pcb board

Type : Customizable

Contact Now

Power Supply Prototype PCB Board Multilayer Fabrication Service ENIG Surface Finish

Production description :

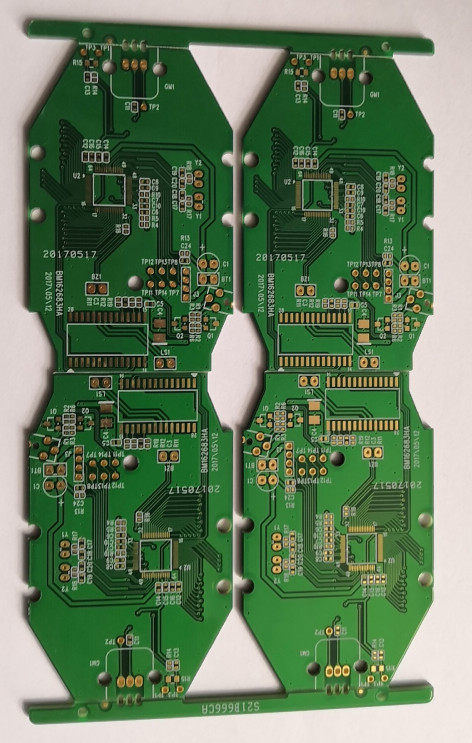

this board is 4 layer it is used on power supply prototype. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.

Key Specifications/Special Features of power supply PCB boards:

Number of layers: Mulity Layer / 4 layer
Base material:

FR4
Copper thickness: 1 / 1 / 1 / 1 / 1 / 1 oz Cu in all layer
Thickness: 1.60 mm
Size:

120.6 x 110.5 mm
Cooper In holes:

min 20um
Surface finishing:

ENIG
Solder mask: LPI
Solder mask:

Green
Legends: White
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Twist and Bow : no more than 0.75 %

PCB Flow Chart.pdf

Products Application:

Our products are widely used in meter, medical, solar energy, mobile, communication, industrial control, power electronics,security, consuming, computer, automotive, aerospace, military and so on. Over 75% of our products are exported to Europe, North America, Japan and other Asia Pacific countries.

Power Supply Prototype PCB Board Multilayer Fabrication Service ENIG Surface Finish

FAQ:

1. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.


2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.

4. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process


5. How many types of surface finish ACCPCB can do?

the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
